Trailer Light Wiring Colors. Rear light/wide beam and license plate on the right; Web remember that yellow has a l in it so that is the left side brake/turn signal and green has a r in it so that is the right side brake/turn signal.
Phillips 7 Way Trailer Plug Wiring Diagram Free Wiring Diagram from ricardolevinsmorales.com
That can make the trailer lights and wiring go much easier. Web the original colors you have are the traditional trailer wiring code so brown=taillights, red=turn/brake and white is ground. Rear light/wide beam and license plate on the right;
The Most Daunting Task In Regards To A Trailer Would Be Connecting It With Your Primary Vehicle.

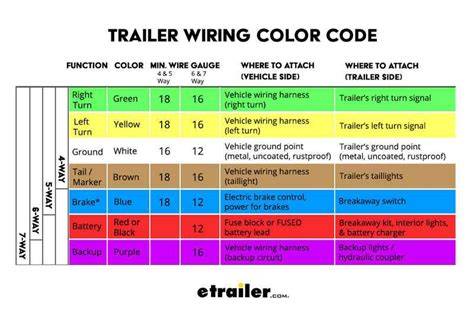

Web what is the color code for trailer wiring? Web our trailer wiring diagram page has all the pins and color codes if you want them. Web white is ground, and brown is for the trailer’s taillights.
Web Color Coding For Sae Standard Trailer Light Wiring.
Web where to start begin by using a circuit tester to ensure each wire offers the necessary power. If you are worried about how you can. That can make the trailer lights and wiring go much easier.
Web The Original Colors You Have Are The Traditional Trailer Wiring Code So Brown=Taillights, Red=Turn/Brake And White Is Ground.
State and federal regulations require all types of trailers to be equipped with tail, stop,. On your new light black=taillights, red=turn/brake. Rear light/wide beam and license plate on the right;
Web Remember That Yellow Has A L In It So That Is The Left Side Brake/Turn Signal And Green Has A R In It So That Is The Right Side Brake/Turn Signal.
Verify the white wire is firmly connected to the frame.
