Half Hot Outlet Wiring. Remove the wire nuts off of the wires. Strip the insulation from the insulated.

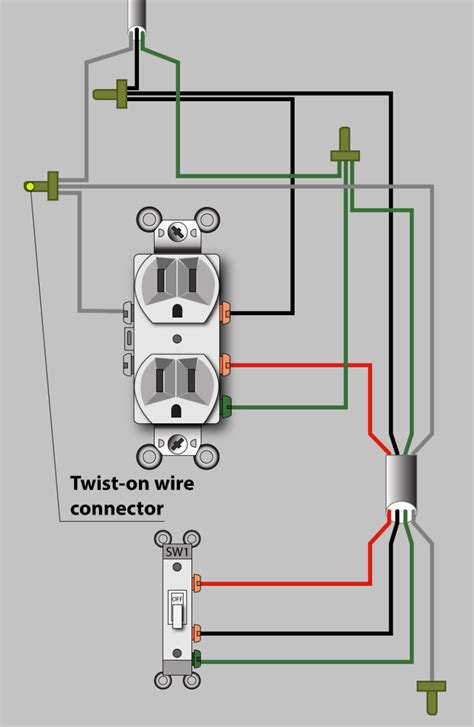

An Electrician Explains How to Wire a Switched (HalfHot) Outlet Home from www.pinterest.com
Web a split outlet (also known as a half hot) has one or both tabs removed to isolate each terminal from the other and allow each half of the outlet to operate independently. With the power off to the circuit, remove the switch and outlet from the wall boxes. At the outlet connect the black wire to the screw next to the red wire.
Web How To Wire A Half Hot Switched Outlet So That A Wall Switch Controls Half Of The Receptacle Outlet And The Other Half Remains On All The Time.
Web how to wire half hot switched outlets: Remove the wire nuts off of the wires. Strip the insulation from the insulated.
With The Installation Described In This.
Web a split outlet (also known as a half hot) has one or both tabs removed to isolate each terminal from the other and allow each half of the outlet to operate independently. In this part i show you how to wire one side of an outlet to a switch while keeping the other side under. Home electrical wiring includes 110 volt outlets and 220.
At The Outlet Connect The Black Wire To The Screw Next To The Red Wire.
Web a full set of wiring diagrams can be found using the links below. Web pigtail this wire in the switch box to the black (feed) wire going to the switch. Web in this video, we learn how to wire a half hot receptacle, which is useful if you want to control an outlet with a light switch.
The Brass Tab Is A Link Between The Top And Bottom Receptacles That Allow Them To Be Isolated From One Another For Applications Such As A.
With the power off to the circuit, remove the switch and outlet from the wall boxes. Web the key to wiring a half hot outlet. Web in this video i will demonstrate how to wire a 3 way switch that controls receptacles that are half hot and half switched.
